PG14 Straight Type 11.5mm Ip67 Cable Connector

Shenzhen HUAYI-FADA Technology Co,.LTD
Contact Now

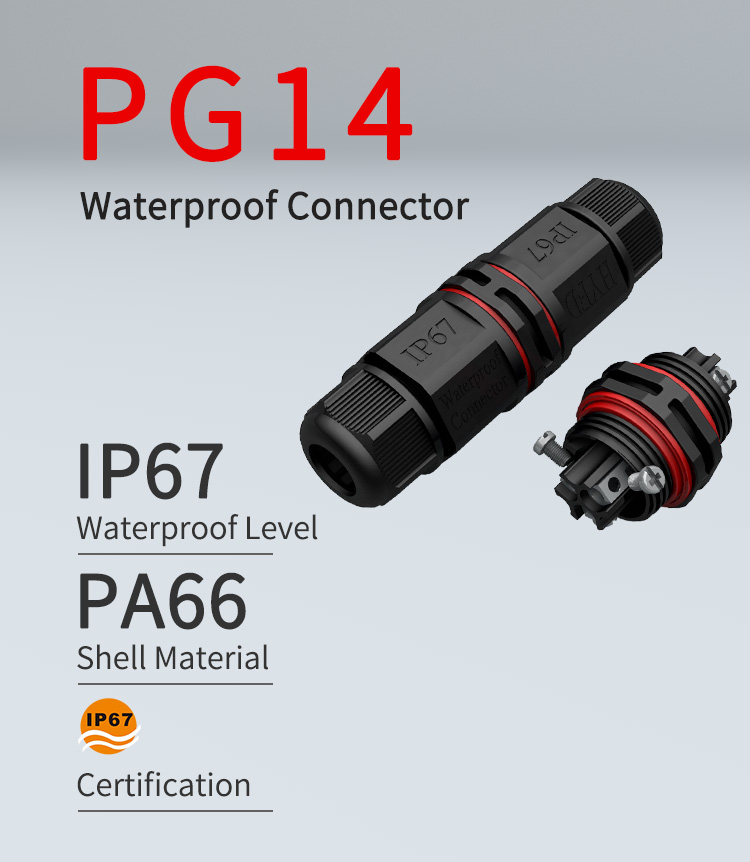

PG14 Straight Type 11.5mm Ip67 Cable Connector

  • 1
  • 2

Brand Name : HYFD

Model Number : PG14

Certification : IP67

Place of Origin : Guangdong, China

MOQ : 200/500

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10000 pcs per day

Delivery Time : 5~12 days as per order quantities

Packaging Details : Carton

Color : Black

Material : PA66

Contact Resistance : ≤5mΩ

Wire OD : 6.0-12mm

Protection Level : IP68

Pin Material : Brass

Finish : Nickel

Contact Now

Waterproof Screw Connector PG Series IP67 Straight Type Connectors

Production:

1) Screw type.

2) 2poles, 3poles, 4poles for option.

3) Quick and easy to operating.

4) Temperature Range: -40°C~+105°C.

5) IP67 waterproof level.

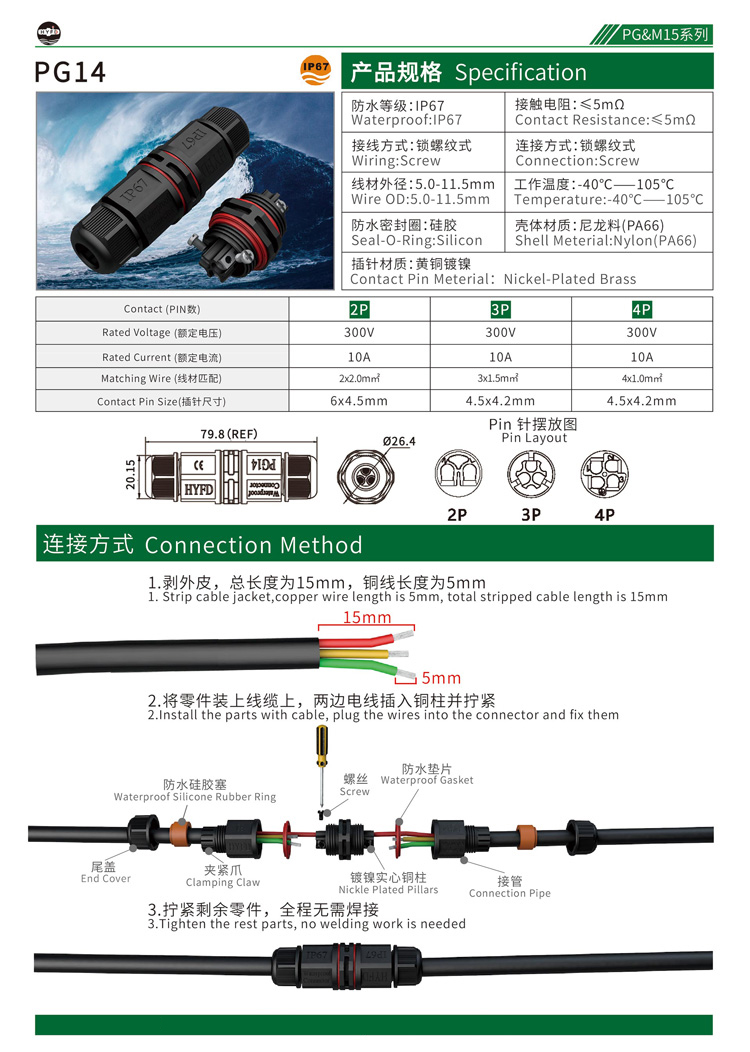

Product Parameters:

Item name PG14 Waterproof cable gland connectors Connecting code Screw assembly
Current rating 8A--10A Operating temperature -40℃~105℃
Operating voltage 250V Wire OD 5.0~11.5mm
Mechanical life 1500 mating cycles Contact pin material Nickle plated brass
Contact resistance ≤5mΩ Shell material Nylon(PA66)
Contacts numbers 2p, 3p, 4p Waterproof level

IP67



WHY US?
Our advantages:


•Free samples available.
•High quality & reasonable price.
•Rich experience: over 12 years.

•Professional design team.

•Short lead time: 2~3 weeks after orders.
•OEM, ODM available.

•Low MOQ: small orders are welcome.


100% Guarantee Qualtiy

•Quality Guarantee: 3 Years

•100% Tested (Not Just Batch Tested)

•OEM supplier for Anphenol, Philips (Signify), OSRAM for over 7 Years
•Manufactured Under Strict Control

FAQ

Q: Do you have certification for your connectors?
A: Yes, we have UL/TUV/CQC/IP68 certificates for this PGT2 connector.

Q: How does your factory control the quality?

A: We have already established a full set of quality control system. All of our products has been tested twice or even three times and 100% inspected before delivery out.
Q: What is the packing?
A: Well, we pack it in neutral cartons or as your requirements.
Q: Can I get some samples for testing before further orders?
A: Certainly, we are happy to offer you samples as per your request. As the old saying goes: To see if to believe, we believe you will be satisfied with our products.
